300V Heat Resistance Signal Cables

The Teflon-based material is used to control/measuring circuits of electric facilities and general industrial facilities requiring heat resistance, and thus has excellent heat resistance, wear resistance, chemical resistance, and the like.

CATALOG
Type,Features,Application Standards Materials & Structure Data Sheet
Product Type

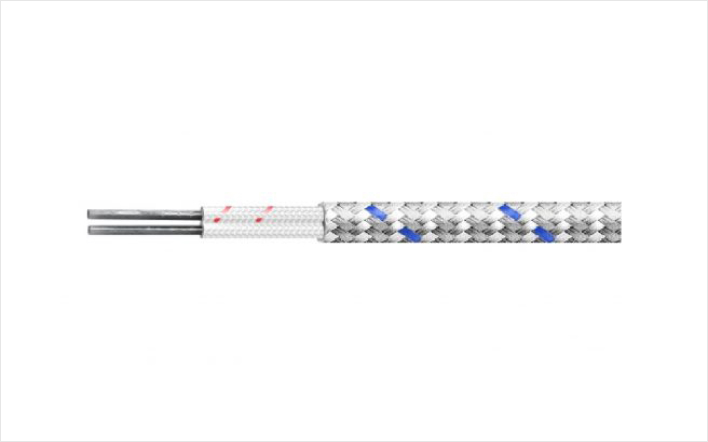

300V heat resistance signal cable
Features
Power plants, susbstations(under 300V), Vessel engine, Petrochemical plants
Normal operating temperature range: 0℃~210 ℃ (32℉~483 ℉)
Effective noise reduction
Excellent Heat resistant
Excellent moisture, chemical and solvent resistance
Application Standards
UL 758 & 1581 / Manufacturer’s Standards
Materials & Structure
  • Conductor: Tin plated copper wire(Solid, stranded wires)
  • Insulation: Fluororesin (FEP, ETFE, PFA)
  • Binder: Polyester Taped
  • Drain wire: Tin plated annealed copper wire
  • Shield: Copper braided (-SB), Al-Mylar Tape (-AMS)
  • Sheath: Fluororesin (FEP, ETFE)
    Number of Core: 2 Core ~ 5 Core
    Conductor Size: 0.5SQ~1.5SQ
Core No. Conductor
(SQMM)		 Insulation
(mm)		 Sheath
(mm)		 Volatage Rate
(V)		 Temp. Rate
(℃)
2~5 0.5~1.0 0.3~0.4 0.5~1.0 300V 150~200
2~5 1.5~2.5 0.4~0.5 0.5~1.2 300V 150~200
