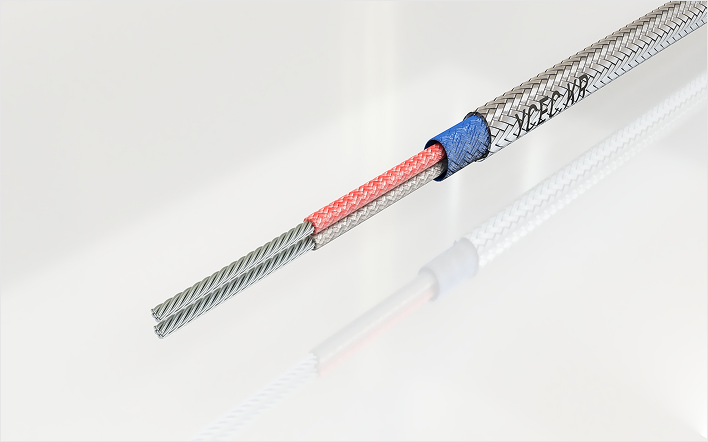

Glass Fiber Braid Type | -GGSBF

Applicable Standard
KS C 1609/ ASTM E230/ IEC 60584-3
Operating Temperature
0~200℃
CATALOG
Features & Applications Materials & Construction Specification Table
Features
Glass fiber braided insulation and sheath with a metallic shielding layer applied inside or outside
Shielding reduces EMI, RFI, and electrostatic interference for stable temperature measurement
Excellent heat resistance ensures insulation stability in high-temperature environments
Superior chemical resistance protects against common chemicals and contaminants
Not waterproof — prolonged humidity exposure may degrade insulation performance
Applications
Automation, control, and heat management in industrial equipment (plants, power stations, steelworks, petrochemical facilities)
Signal transmission in environments with strong electromagnetic interference (large motors, electric furnaces, generators, high-power equipment)
High-temperature areas such as blast furnaces, heating furnaces, and heat treatment line
Temperature monitoring of boilers, turbines, and other high-heat components
Materials & Construction
Conductor : Depends on Thermocouple Types
Insulation : Glass Fiber Braid
Sheath : Glass Fiber Braid
Shield : Tinned Copper Braid

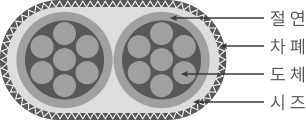

Cross-sectional View
Product Conductor Thickness of
Insulation
(mm)		 Thickness of
Sheath
(mm)		 Overall
Diameter
(mm)		 Withstand Voltage
(V/min)		 Insulation resistance
(MΩ/km)		 Weight
(kg/km)
Sectional
Area(mm²)		 Construction
(No./mm)		 Diameter
(mm)
(Type)X-H-GGSBF 2.0 7/0.6 1.8 0.32 0.35 0.3 3.74 X 6.18 Min. 5 20
1.25 7/0.45 1.35 0.32 0.35 0.3 3.29 X 5.28 Min. 5 13.7
0.5 7/0.3 0.9 0.32 0.35 0.3 2.84 X 4.38 Min. 5 9.3
