PT Sensor
-
Reed Wire Type C (Cryo)
Operating temperature range: -196°C to +150°C. Lead wires made of silver–palladium alloy provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-
Reed Wire Type L (Low)
Operating temperature range: -50℃ to +400℃. Lead wires made of silver–palladium alloy provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-
Reed Wire Type LN (Low)
Operating temperature range: -50°C to +400°C. Lead wires made of nickel with silver plating provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-
Reed Wire Type M (Medium)
Operating temperature range: -70°C to +500°C (short-term +550°C). Nickel lead wires with platinum coating provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-
Reed Wire Type H (High)
Operating temperature range: -70°C to 900°C (HAD). Platinum lead wires provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-
Reed Wire Type MR 828 and 845
Operating temperature range: -70°C to +500°C. Nickel lead wires with platinum plating provide excellent heat and corrosion resistance, ensuring long-term stable performance and optimized mechanical strength
-

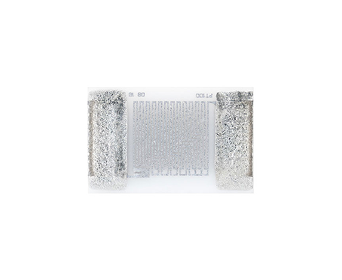

SMD
Operating temperature range: -50°C to +150°C. SMD-type Pt elements provide high accuracy, compact design, and stable long-term performance across various environments
-

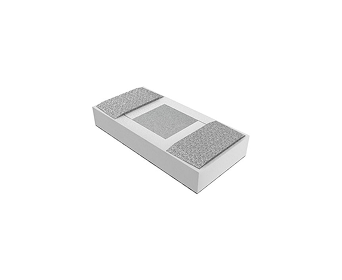

SMD-SC
Operating temperature range: -50°C to +200°C. SMD-type Pt elements provide high accuracy, compact design, and stable long-term performance across various environments
-

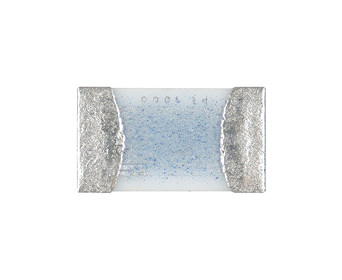

SMD-FC
Operating temperature range: -50°C to +150°C. SMD-type Pt elements provide high accuracy, compact design, and stable long-term performance across various environments
-

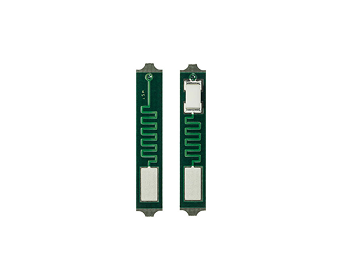

FCB
Operating temperature range: -40°C to +150°C. PCB-type Pt elements provide precise temperature measurement, easy integration, and stable long-term performance
