PT Sensor

PT Sensor

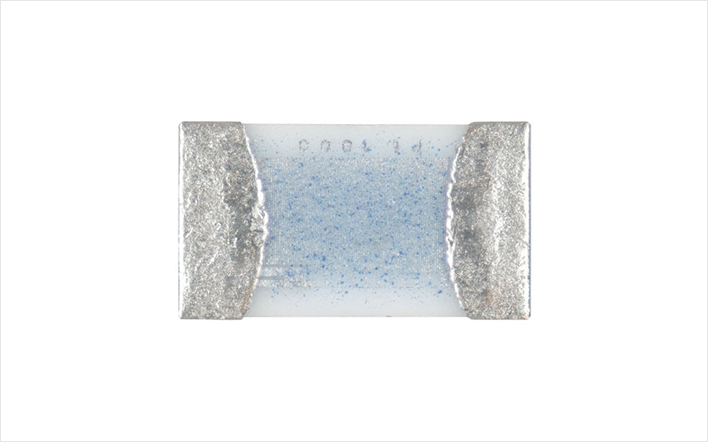

SMD

CATALOG
Applications Materials & Construction Specification Table
Applications
Temperature detection on circuit boards, designed for automatic assembly in large-scale applications
Materials & Construction
Temperature Range : -70℃ ~ +500℃ (B Class)
Specification : DIN EN 60751

Tolerance class

  • : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K
Lead wire : Pt clad Ni wire
Connection technology : Welding, brazing and crimping

| Tolerance Class F 0.6 over the temperature range -50 °C to +150℃*R₀: ±0.24%, Face up

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel L W H D Ice water 0 °C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
SMD 1206 V Pt 100 32207589 3.2 1.6 0.6 0.5 0.4 0.15 0.30 3.5 10
SMD 1206 V Pt 1000 32207594 3.2 1.6 0.6 0.5 0.4 0.15 0.30 3.5 10
SMD 0805 V Pt 100 32207604 2.3 1.4 0.6 0.5 0.8 0.10 0.25 2.5 8
SMD 0805 V Pt 1000 32207614 2.3 1.4 0.6 0.5 0.8 0.10 0.25 2.5 8
SMD 0805 V Pt 10000 32208655 2.3 1.4 0.6 0.5 0.8 0.10 0.25 2.5 8
SMD 0603 V Pt 1000 32207637 1.7 0.9 0.45 0.3 0.8 0.10 0.25 2.5 8

| Tolerance Class F 0.3 over the temperature range -50 °C to +150 ℃*R₀: ±0.12%, Face up

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel L W H D Ice water 0 °C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
SMD 1206 V Pt 100 32207590 3.2 1.6 0.6 0.5 0.4 0.15 0.30 3.5 10
SMD 1206 V Pt 1000 32207595 3.2 1.6 0.6 0.5 0.4 0.15 0.30 3.5 10
SMD 0805 V Pt 100 32207605 2.3 1.4 0.6 0.5 0.8 0.10 0.25 2.5 8
SMD 0805 V Pt 1000 32207615 2.3 1.4 0.6 0.5 0.8 0.10 0.25 2.5 8
SMD 0603 V Pt 1000 32207638 1.7 0.9 0.45 0.3 0.8 0.10 0.25 2.5 8
※ Tolerances in mm
L: ± 0.2, W: ± 0.2, H: ± 0.1, D: ± 0.2
