PT Sensor

PT Sensor

PCB

CATALOG
Applications Materials & Construction Specification Table
Applications
Automotive, white goods, ventilation, heating and energy generation, medical and industrial equipment
Materials & Construction
Temperature Range : -40℃ ~ +150℃ (B Class)
Standard Specification : DIN EN 60751
Tolerance : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K

| Tolerance class F 0.3 over the temperature range -40 °C to +150 °C

Name Order number Dimensions in mm Self-heating
Assembled in VA tube d = 5.2 mm		 Response time in seconds
Assembled in VA tube d = 5.2 mm
Type Design Nominal
resistance		 Blister reel L W H Ice water 0 °C
in K/mW		 Air: v = 2 m/s
t₀.₅ t₀.₉

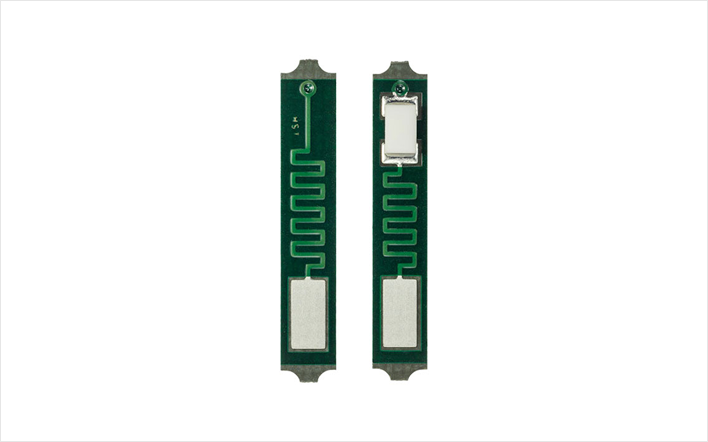

PCB 2225 Pt 100 30201075 22 2.5 0.9 0.2 3 8
PCB 2225 Pt 1000 30201063 22 2.5 0.9 0.2 3 8
PCB 2240 Pt 500 30201069 22 4.0 0.9 0.2 3 8
PCB 2240 Pt 1000 30201067 22 4.0 0.9 0.2 3 8
PCB 1325.4 Pt 500 30201107 13 2.5 1.0 0.2 3 8
PCB 1325.4 Pt 1000 30201106 13 2.5 1.0 0.2 3 8

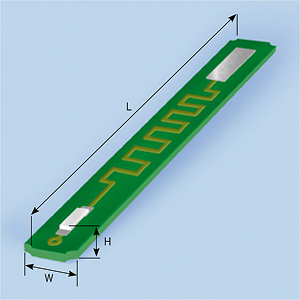

※ Tolerances in mm
W: – 0.2, L: + 2.2/– 0.2
