PVC,Flat Type | -VVSBF

Applicable Standard
KS C 1609/ ASTM E230/ IEC 60584-3
Operating Temperature
-10~70℃
CATALOG
Features & Applications Materials & Construction Specification Table
Features
PVC insulation and sheath with an internal metallic shielding layer
Shielding reduces EMI,RFI,and electrostatic interference, ensuring stable temperature signals
Excellent resistance to water,abrasion, chemicals, and oils
High mechanical strength and durability for reliable signal transmission, even in outdoor environments
Cost-effective and highly reliable
Suitable for use at temperatures up to 90`C when HR-PVC is applied
Applications
Automation, control, and heat management in industrial equipment (plants, Power stations, steelworks, petrochemical facilities)
Signal transmission in environments with strong electromagnetic interference(large motors, electric furnaces, generators, high-power equipment)
HVAC systems, temperatures controllers, and internal sensors in home appliances
Temperature measurement and monitoring in environments below 70'C

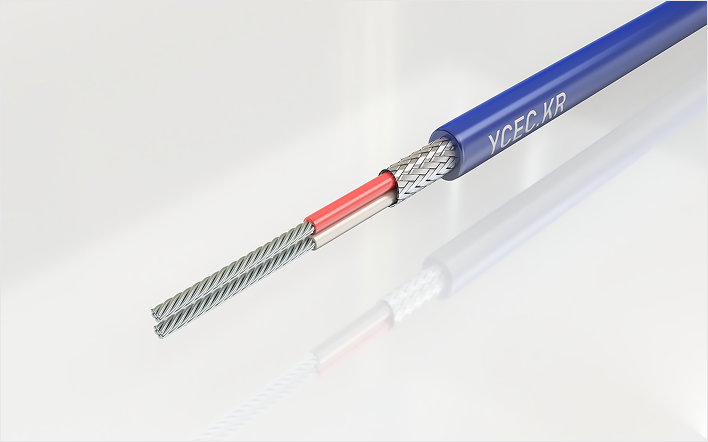

Materials & Construction
Conductor: Depends on Thermocouple Types
Insulation : PVC
Shield: Tinned copper Braid
Sheath: PVC

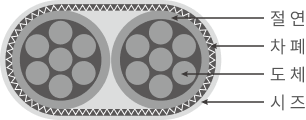

Cross-sectional View
Product Conductor Thickness of
Insulation
(mm)		 Thickness of
Shield
(mm)		 Thickness of
Sheath
(mm)		 Overall Diameter
(mm)		 Withstand
Voltage
(V/min)		 Insulation resistance
(MΩ/km)		 Weight
(kg/km)
Sectional
Area
(mm²)		 Construction
(No./mm)		 Diameter
(mm)
(Type)X-G-VVSBF 2.0 7/0.6 1.8 0.6 0.3 0.9 5.4 X 8.4 AC 500 Min. 50 28
1.25 7/0.45 1.35 0.6 0.3 0.9 4.95 X 7.5 AC 500 Min. 50 20
0.5 7/0.3 0.9 0.35 0.3 0.7 3.6 X 5.2 AC 500 Min. 50 10
*UL-Certified products Available
