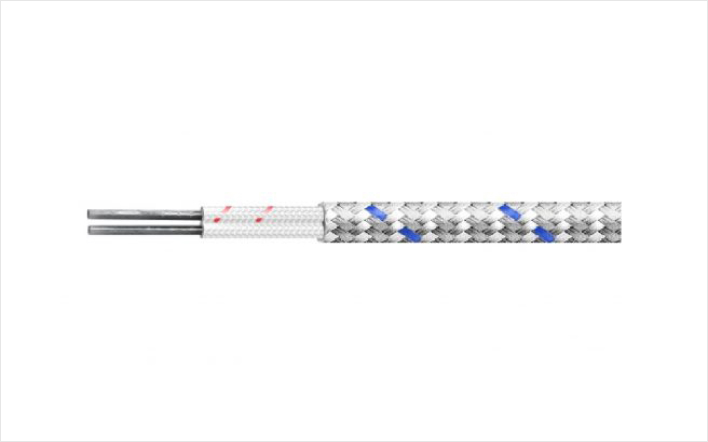

SRGW

Applicable Standard: UL 758, Manufacturer's standard

Operating Temperature: -55~180°C

Product Features & Applications Materials & Structure Specifications

Features: Silicone rubber insulation with glass fiber braid and silicone varnish coating

Excellent resistance to corrosion, heat, and chemicals

Maintains flexibility across a wide temperature range

Applications: Internal wiring of home appliances, including ovens, toasters, and lighting equipment

Automotive engine and electrical system wiring

Residential equipment wiring for heating and cooling systems

Materials & Construction: Conductor : Tinned Copper Wire

Insulation : Silicone Rubber

Sheath : Glass Fiber Braid

Coating : Silicone varnish

Cross-sectional View

Conductor		Thickness of Insulation(㎜)	Thickness of Braid (mm)	Overall Diameter (mm)	Withstand Voltage (V/min)
Sectional Area(㎟)	Diameter(㎜)	Thickness of Insulation(㎜)	Thickness of Braid (mm)	Overall Diameter (mm)	Withstand Voltage (V/min)
0.75	1.1	0.4	0.15	2.4	AC1500
1.5	1.6	0.4	0.15	2.7
2.5	2.0	0.5	0.15	3.4
4.0	2.5	0.6	0.2	4.1
6.0	3.1	0.8	0.2	5.2
10	4.0	0.8	0.2	6.3
16	5.5	0.8	0.2	7.9
25	7.0	1.1	0.3	9.9
35	8.4	1.5	0.3	11.8
50	10.0	1.5	0.3	14.0
70	10.7	1.5	0.3	15.7
