T/C Extension & Compensating Wires

Thermocouple Duplex Wire

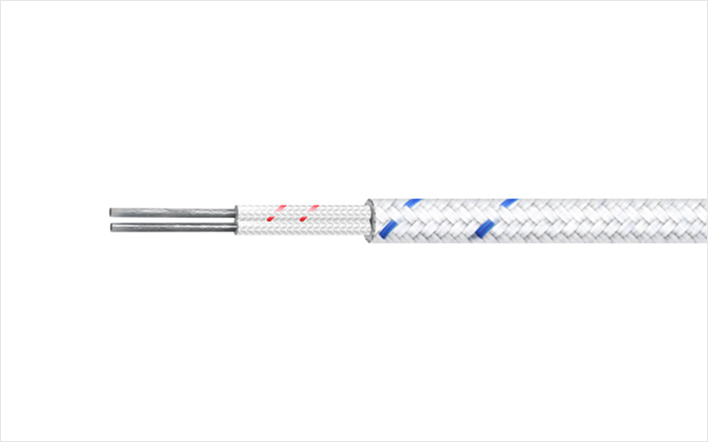

Glass Fiber | PSC-H

Applicable Standard
KS C 1609/ ASTM E230/ IEC 60584-3
Operating Temperature
0~200℃
CATALOG
Features & Applications Materials & Construction Specification Table
Features
Glass fiber braided insulation and sheath
Excellent heat resistance maintains insulation performance in high-temperature environments
Superior chemical resistance protects against common chemicals and contaminants
Not waterproof — prolonged exposure to humidity may reduce insulation effectiveness
Applications
Optimized for short-distance extension and precision temperature measurement
Capable of directly functioning as a sensor, unlike compensating cables
Commonly used in manufacturing, heating equipment, and laboratory devices
Materials & Construction
Conductor : Depends on Thermocouple Types
Insulation : Glass Fiber Braid
Sheath : Glass Fiber Braid
Cross-sectional View
Product Name / Type Conductor Construction
(No./mm)		 Insulation Thickness
(mm)		 Sheath Thickness
(mm)		 Overall Diameter
(mm)		 Weight
(kg/200M)
PSC-(Type)1-H 1/0.6 0.3 0.3 1.8 X 3.0 2.2
PSC-(Type)2-H 1/0.32 0.3 0.3 1.52 X 2.44 0.9
